Linear Translation Stages

Linear Translation Stages Specification

Color
Black Anodized

Objective
Precise Movement

Material
Black Anodized Al

Size
6565mm

Function
Positioning

Resolution
Manual Control

Linear Translation Stages Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
20 Pieces Per Month

Delivery Time
2 Week

Main Export Market(s)
Asia

Main Domestic Market
All India

About Linear Translation Stages

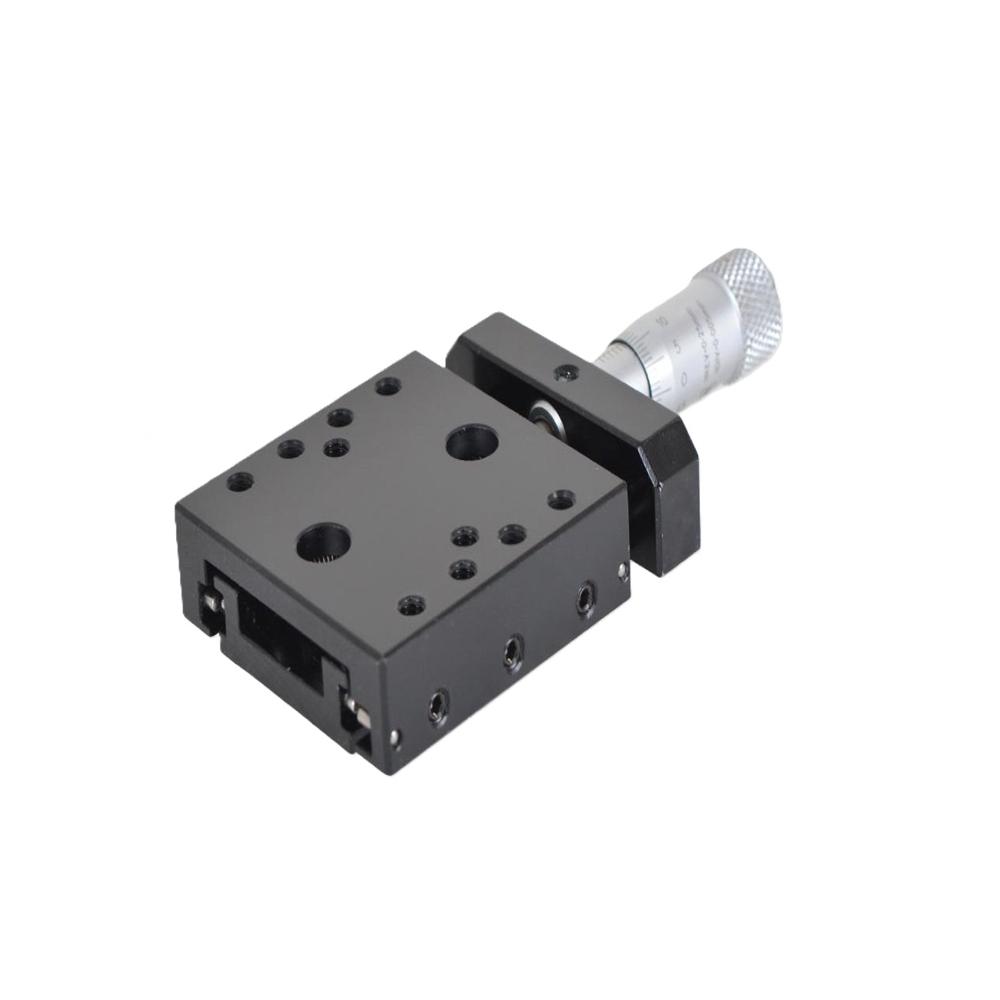

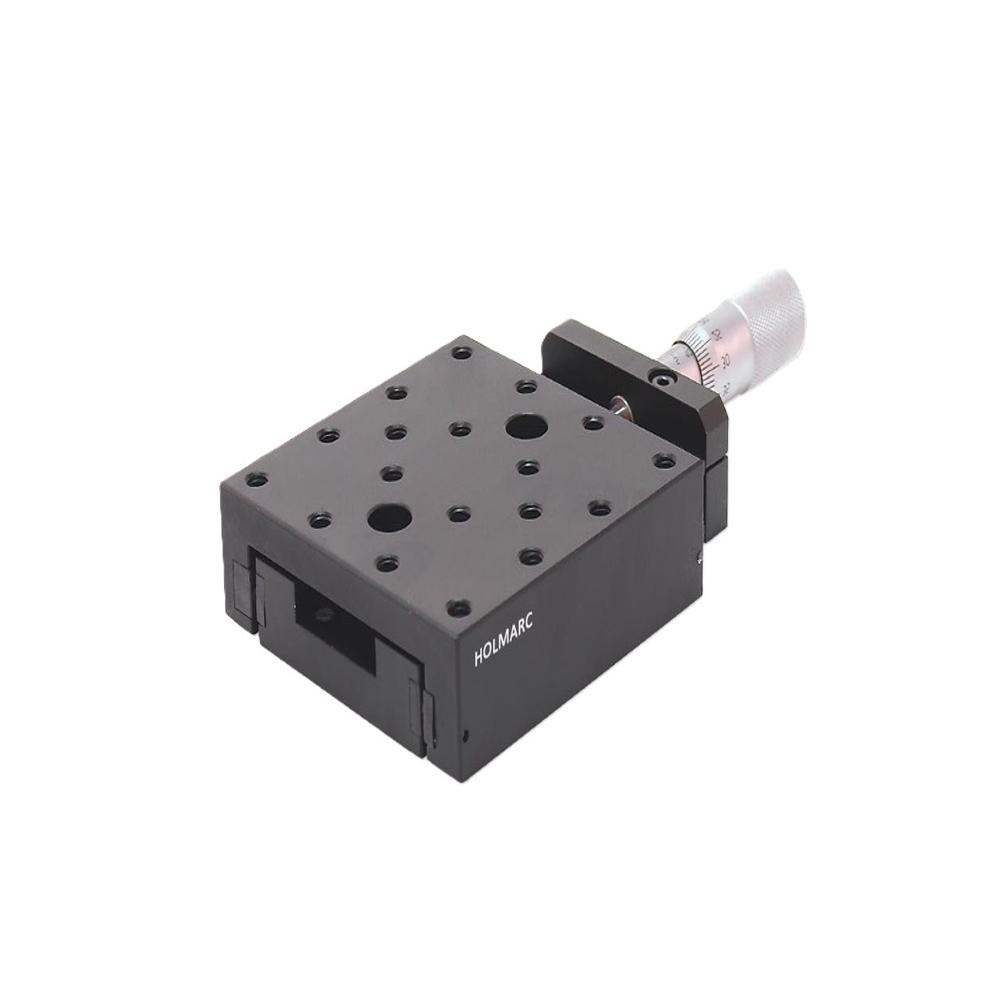

A translation stage is a mechanical device used to move an object precisely in a linear direction.

It consists of a platform and a base, joined by a guide or a linear bearing, which allows the platform to move linearly with respect to the base.

Model No	Platform Size	Travel	Load Capacity	Availability	Price (Rs)
CTS-50-50	50 x 50	10mm	5 Kg	In Stock	8000
CTS-65-65	65 x 65	25mm	20 Kg	In Stock	10000
CTS-65-90	65 x 90	25mm	20 Kg	In Stock	12500
TS - 35	35 x 35	6mm	3 Kg	4-6 Weeks	Quote
TS - 50	50 x 50	10mm	5 Kg	4-6 Weeks	Quote
TS - 65	65 x 65	15mm	20 Kg	4-6 Weeks	Quote
TSQ - 90	90 x 90	25mm	20 Kg	4-6 Weeks	Quote
TSQ - 120	120 x 120	50mm	20Kg	4-6 Weeks	Quote

Precision Engineering for Reliable Positioning

Designed for tasks requiring meticulous adjustment, the Linear Translation Stage delivers consistent and repeatable positioning results. Its manual control system ensures users can direct motion with exactitude, making it suitable for various experimental setups and precision measurement applications.

Durable Construction and Enhanced Usability

Constructed from black anodized aluminum, the 6565mm stage combines rigidity with lightweight performance. The anodized finish not only elevates appearance but also fortifies the surface against corrosion, contributing to extended operational life even under demanding conditions.

FAQs of Linear Translation Stages:

Q: How does the manual control mechanism of the Linear Translation Stage facilitate precise movement?

A: The manual control allows users to make incremental, tactile adjustments to the platforms position, resulting in high precision movement necessary for fine alignment and positioning tasks.

Q: What are the benefits of using a black anodized aluminum stage for positioning applications?

A: Black anodized aluminum provides superior corrosion resistance and durability, ensuring longevity and maintaining a stable operating surface under repeated use.

Q: When is the 6565mm Linear Translation Stage recommended for use?

A: It is ideal when small to medium-scale positioning is required, such as in laboratory experiments, optical alignments, or assembly tasks demanding accurate manual adjustments.

Q: Where can I source a Linear Translation Stage of this specification in India?

A: These stages are available from specialized manufacturers and suppliers in India who offer precision engineering products for research and industrial needs.

Q: What is the process for manually adjusting the position on this stage?

A: Users turn adjustment knobs connected to the translation mechanism, moving the platform smoothly along one axis, which enables controlled and secure repositioning of attached equipment.

Q: How is the Linear Translation Stage typically utilized in positioning functions?

A: It is commonly employed to align instruments, correct placement errors, or adjust components precisely in experimental setups, facilitating accurate results and optimal performance.

Q: What distinct advantage does manual resolution offer compared to automated stages?

A: Manual resolution provides direct user control for immediate, tactile feedback, making it preferable for tasks where ultra-fine adjustment and personal oversight are necessary.
